Customizable with a range of engine choices, from inboard, outboard, diesel, or electric, to suit your specific needs.

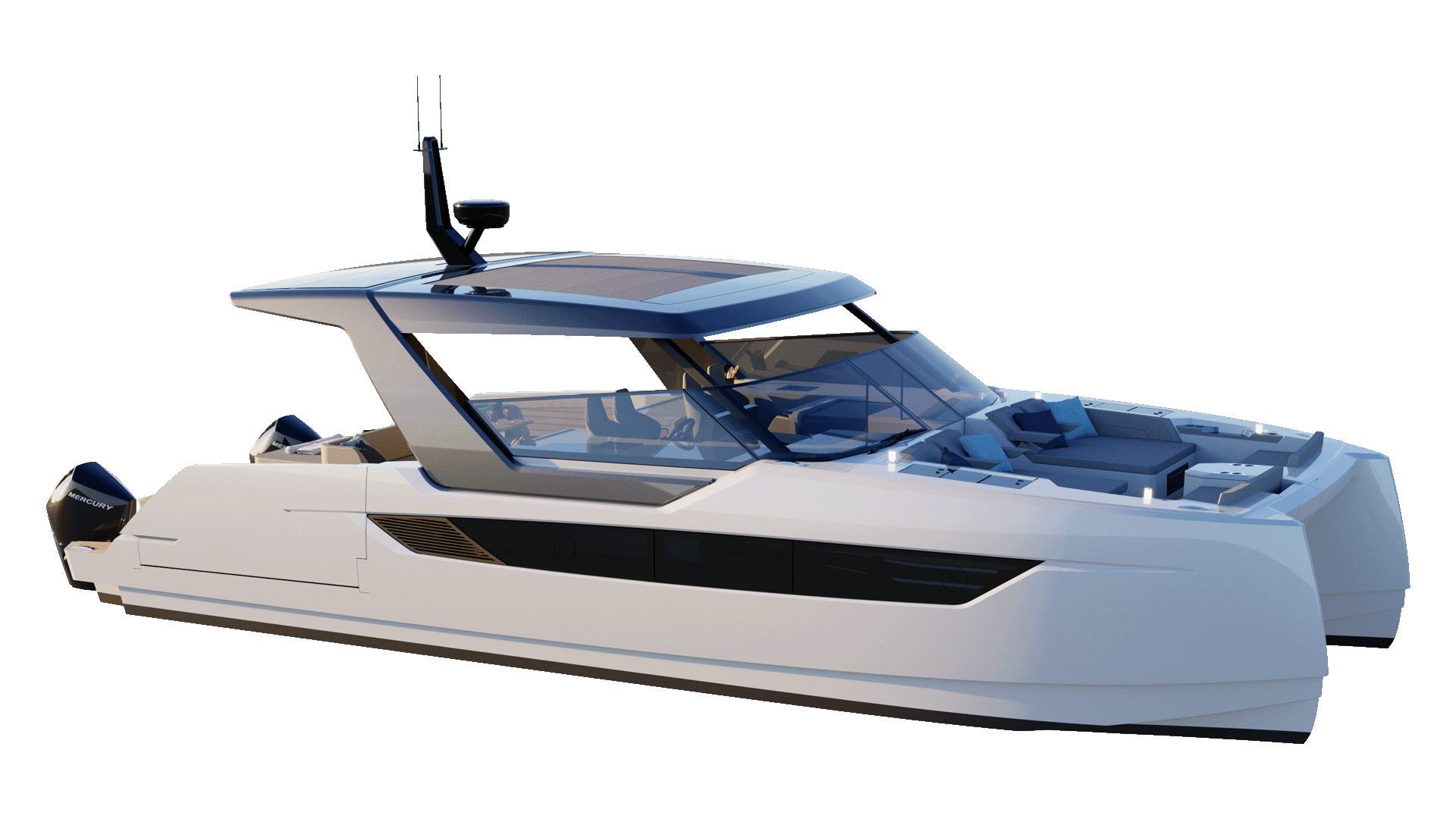

Xquisite 40′ PowerCat

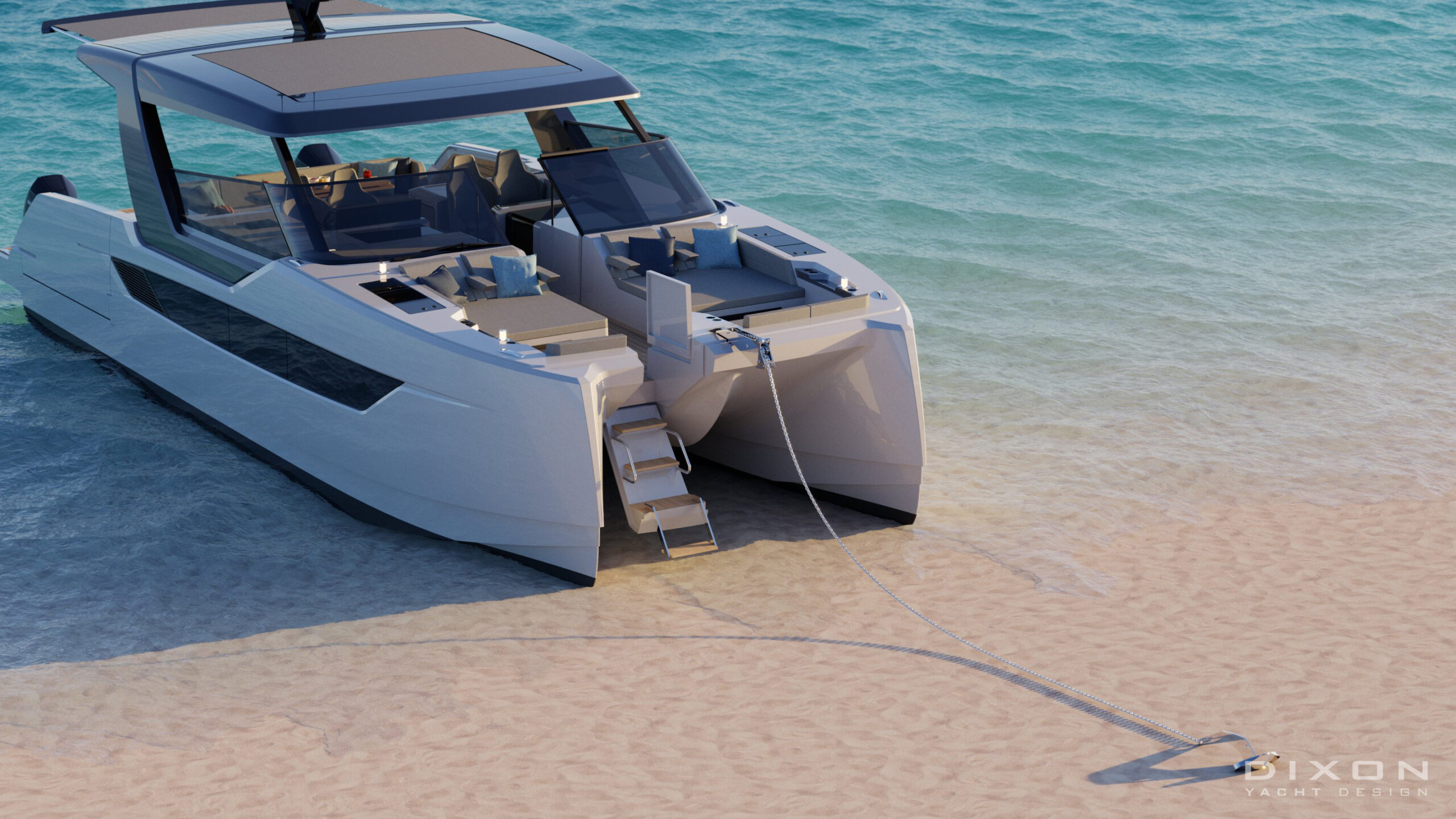

The new Xquisite 40′ PowerCat was designed in collaboration with Dixon Yacht Design to create the perfect cabin cruiser to spend the weekends or even weeks for exploring the stunning waters of the Bahamas. She’s designed for speed and has a shallow draft, allowing easy access to beaches thanks to the hydraulic forward steps.

The cockpit can be fully enclosed for air conditioning or to protect against bad weather, and the aft deck extends to a spacious beach club-style area.

Xquisite 40′ PowerCat Specifications & Extras

  • Specifications

    Length overall (Inboard)11.75 m38.55’
    Length overall (Outboard)12.28 m40.28’
    Length at waterline10.61 m34.81’
    Beam4.85 m15.91’
    Hull Draft0.51 m1.67’
    Draft (inc. Inboard)0.952 m3.12’
    Draft (inc. outboard)0.872 m2.86’
    Displacement Lightship9.0 t19.481 lbs
    Fuel capacity2x 500 liters132.08 gal
    Fresh water capacity2x 190 liters2x 50.19 gal
    Black Water2x 76 liters2x 20.07 gal
    Outboard2x 300-425 HP
    Inboard2x 300-440 HP
    Speed estimate30-38 kts
    CE CertificationCategory B
  • Deck

    Navigation Lights
    Courtesy deck lights
    Platform, aft cockpit and forward cockpit in flexiteak
    Stainless grab handles
    2x aft boarding gates
  • Aft Deck

    Aft U-shape seat and sun pad behind with adjustable backrests to provide flexible arrangement, storage integrated into seat
    Folding dining/coffee table
    2x large engine room access hatches for inboard version, hatches provide large storage lockers with outboard version
    Two hatches provide access forward of engines
    Port and starboard hydraulic folding side platforms with side access gates (2,7m long)
    Electric aft swim ladder with 6 steps
    Port and starboard Galley modules with:
    • Kenyon grill or induction hob
    • Sink
    • Fridge
    • Ice maker
    Hardtop with:
    • Electric opening canvas sunroof
    • Electric opening aft canvas sunshade
    • Integrated canvas stowage for canvas enclosure
    • Mast for nav lights/equipment and radar
    • Integrated flexible solar panels
  • Helm

    Helm console to starboard with:
    • Twin helm seat with fore and aft adjustment
    • Dual chart displays
    • Throttle + joystick
    • Trim tab controls
    • Full engine instrumentation
    • Steering wheel
    • VHF, Instruments, compass, switches etc.
    • Drink’s holder and wireless mobile charging
    Two passenger seats to port with stowage and drinks holders
  • Foredeck

    Port and starboard forward-facing seats with folding armrests and aft facing seat with infill to convert to sun pad
    3x hatches for access to lockers and bow compartments
    2x hatches for access to windless, hydraulic foldaway anchor arm, chain and anchor bridle
    4 pop-up LED lights
    Integrated drinks holders, speakers, and wireless phone charging
    Optional forward awning system with carbon poles
    Optional forward bow boarding via hydraulic stairs with manual lower step
  • Accommodation

    2 double cabins, one to port, one to starboard, both convertible to twins with infill modules removed
    Port and starboard heads with:
    • Separate shower compartment
    • Electric flushing toilet and sink
  • Doors, Windows & Hatches

    Glass windscreen with central access to foredeck
    2D curved Hull glass with Lewmar port in glass (PING)
    • 4 x PING 200 ∅
    Lewmar flush deck hatches
    • 6 x size 10 hatches
    2x Size 4 Lewmar Flush mitre portlights
    2x Sliding companion way doors
    GRP gate to foredeck
    2x glass panels for deck
  • Mooring & Anchoring

    Hydraulic throw over anchor arm
    16 kg Lewmar epsilon anchor
    Vertical electric Windless
    Bow eyelets and Anchor Bridal
    6 pop-up mooring cleats
  • Propulsion

    Inboard and outboard options
    Humprhee or Zipwake interceptors
    Raw water strainer
    Engine room forced ventilation
    Engine room soundproofing
    Remotely operated fire extinguisher system
  • Fuel System

    2x 500 L Fuel tanks
    Remote fuel shutoff valves
    Fuel tank gauges
    Fuel fillers on port and starboard
    High-capacity fuel filters/water traps with fuel contamination warning system
  • Water System

    Freshwater system

    2x 190 litre water tanks
    Tank gauges
    Water fillers on deck
    2x (TBC) Water pumps for pressurised hot /cold water system

    Black and grey water system

    2x 76 litres black water tanks, one located in each hull
    Tanks gauges
    Port and starboard deck pump out
  • Air Conditioning System

    2x 16,000 BTU 48VDC air-cons
    Air-cons supplying cabins and deck as well
  • Electrical

    Flexible solar panels on hardtop
    House batteries: Mastervolt Li-ion – 24kWh
    2x start batteries
    Shore power connection and cord
    LED lighting
    LED underwater lights
    CZone digital switching system
    Fusion sound system with subwoofers and speakers throughout
  • Optional Equipment

    Electric propulsion package (inboard or outboard)
    Electric opening bow boarding ladder
    Convertible cockpit table on electric pedestals
    Foredeck sunshade with carbon fibre support poles
    Ice maker
    4x pop-up LED lights around foredeck
    Scuba compressor and tanks
    Fishing version
    Additional fridge/freezer
    Dinghy
